Many GM vehicles are equipped with Low Voltage Differential Signaling (LVDS), Universal Serial Bus (USB) and Coaxial (Coax) cables for a number of screen and camera connections as well as high-speed data transmission.

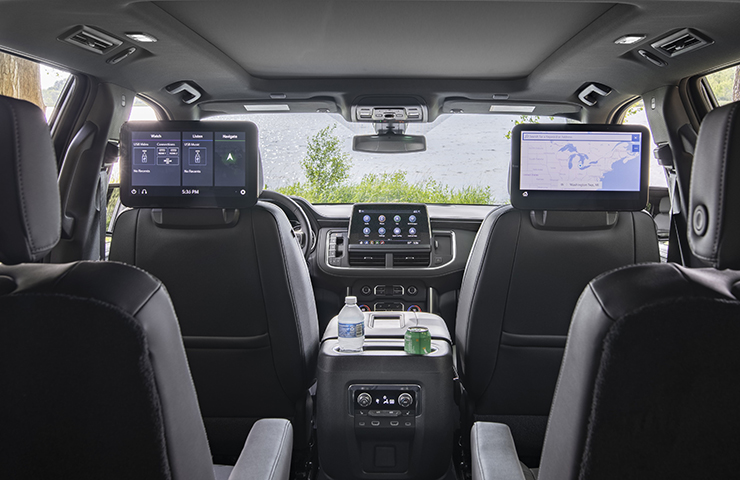

例如，2021 Tahoe、Suburban、Yukon和Escalade的后座信息娱乐系统具有两个视频屏幕显示(图1）乘客侧的显示器1是通过以太网电缆连接到无线电的智能设备。显示器1还通过LVDS电缆连接到驾驶员侧的显示器2和后用户端口（USB和HDMI端口）。

Fig. 1

另一个例子是环绕视觉摄像头系统，它使用屏蔽同轴电缆将每个摄像头连接到视频处理控制模块。同轴电缆为摄像机提供电源，并将视频图像传输至视频处理控制模块。

通用汽车公司的电缆维修策略是在解决相关车辆问题时更换这些电缆，而不是进行维修。切勿试图修理车辆上的此类电缆。必须更换整个电缆/线束或部件。

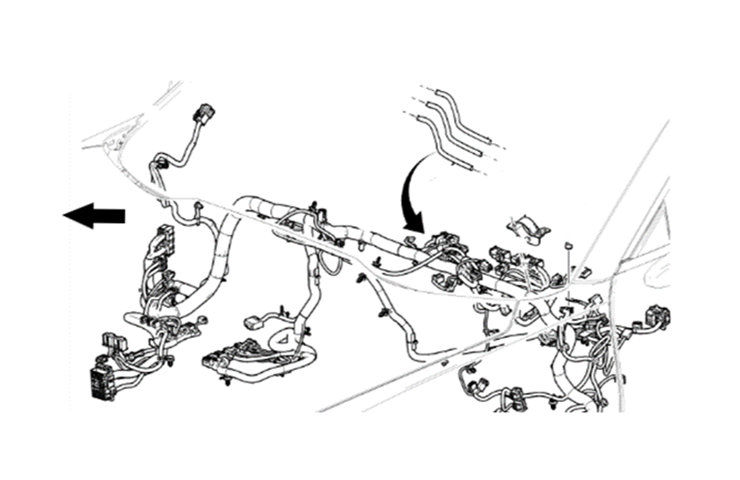

TIP:LVDS, USB and Coax cables can be found in the Electronic Parts Catalog (EPC) by first identifying the main harness that contains the needed cable and then looking for the cable references in the accompanying graphic. (Fig. 2)

Fig. 2

Cables come complete with cable, terminals and connectors fully assembled, except for cables contained within a hybrid connector (cable plus non-cable circuits) If the cable connector bodies are damaged, the complete cable must be replaced. If the cable is contained within a hybrid connector, the replacement cable assembly will not include the hybrid connector body. In addition, for Coax cables only, the cables must be replaced as an assembly when multiple Coax segments are together as one assembly.

电缆维修

When replacing a faulty or damaged cable, first disconnect the cable connectors at both ends. Route the new cable along the harness and use tie-straps to attach the cable to existing harnesses or brackets. Be sure to not pinch the cable or bend it more than a 2-inch (5 cm) radius. Tape or foam can be used to prevent the cables from rattling if needed.

With the new cable installed, reconnect the connectors to the components. Cut the connectors off of the older cable as close to the harness breakout as possible without damaging the harness.

Ethernet Cables

Ethernet cables should be replaced and not repaired as well. Service harness kits are released per vehicle that contain a length for each leg/peripheral device. If an Ethernet wiring repair kit is not available, the entire harness must be replaced.

Ethernet cables come without the connector, but with the terminals crimped on the cable. The cables are a universal length to service as many applications as possible with the fewest part numbers. As a result, the cable received may be slightly (<500 mm) longer than the original cable contained within the factory harness. Any extra length of cable should be coiled up and secured.

After disconnecting the faulty or damaged cable connectors at both ends, remove the terminals from both connectors using the proper terminal removal tool. Overlay the properly twisted pair of wires provided in the Ethernet wiring repair kit and then route and secure the Ethernet wiring to the existing harness. Insert the terminals into the connectors and reconnect the components.

有关线路维修的更多信息，请参阅相应的维修信息。务必在开始维修前检查维修程序，以确认遵循了正确的程序。

– Thanks to Peter Joslyn
